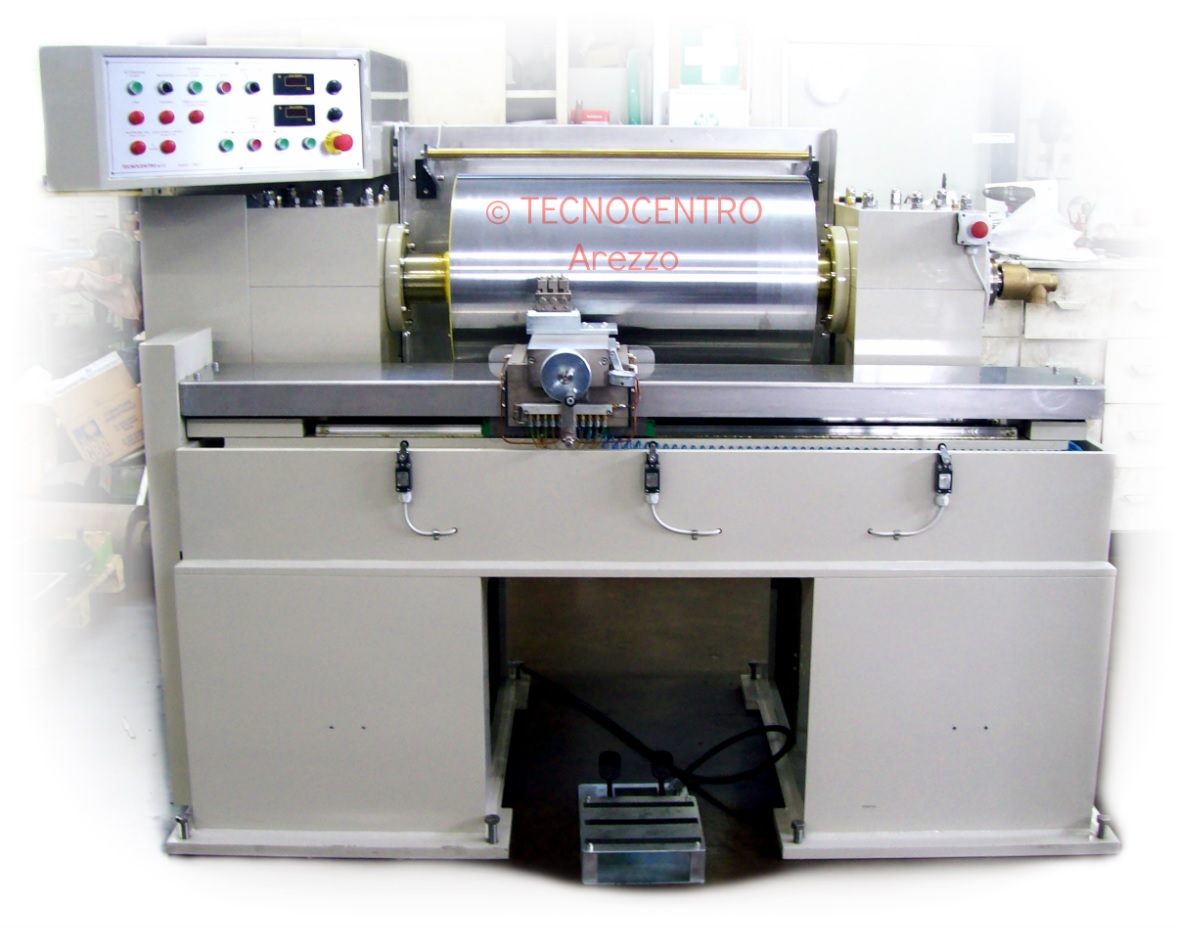

New Model "TCN"
- Please contact us for further info and orders -

Zoom image

Cylinder drum size options: Ø 500 x 830 mm / Ø 400 x 700 mm / Ø 320 x 700 mm.

- Brand new Ice Lathe type, completely designed on CAD software and built from zero by hand, solid and essential;

- High quality features, with high accuracy on the working;

- Simple and easy-to-learn use for the operator;

- Very silent, trustable machine with a complete recovery of metal chips and water thanks to the bed itself that works like a 360-degrees water basin.

- The carriage is built AROUND the fixed INOX protection carter on the rails:
the moving of carriage keeps the rails always protected from water, metal chips and dirt. (patented system ©)

- Inlet and Outlet of freezing liquid are placed on the external right side of the tailstock, thanks to our international patented system ©

- Our "TCN" Ice Lathe model can be ordered chosing between Two options:
1) ONLY FLATS WORKING (faceting);
2) FLATS + PLC AUTOMATION FOR PITCH WIDTHS (threadings) (with added costs).

OUR PREVIOUS OVERHAULED MACHINES (NOT AVAILABLE ANYMORE):

  SilverMax



 Cylinder dimensions: Ø 500 x 1000.
Machine equipped for Flat workings, and pitch-widths Pavé, Concaves and Bevels.
New generation double-chamber cylinder.
Brake on cylinder’s axis.
Engine with rotation stability.
Forced lubrication of the heads.
Electric pump for the oil for guide rails.
Electronic footswitches.
 RAN 270



 Available also in cylinder's diameters of: 300 - 320 - 350 - 400.
Lathe designed ONLY for flat workings on empty chains (and solid chains too) with particular mechanical features.
Central screw between the guide rails for movements right/left of the carriage.
Cylinder shaft passing through the counter-head.
Rotation of cylinder's engine and carriage's engine with continuous variation.
Carriage and diamond-toolholder chemically treated for anti-rust.
Cylinder electronically balanced up to 1'500 RPM.
Cylinder braking with electromagnetic system.
External sleeve off the counter-head for the liquid.
Automatic lubrication of the heads, the central screw and the guide rails.
 SCUBA 270



 Modified ex-COMEV lathe.

Totally overhauled, with application of
Pave' / Concaves / Flat workings machine.
Ten-passages wire-drawing machine
mod. T10

Wire-drawing machine with Widia-layer covered reel.
TC 400



 Machine only for flat and 2-sides / 4-sides / 10-sides chains.

Works with chains of any dimensions, but designed to work with big size chains.
TC 400 B



 Machine only for flat and 2-sides / 4-sides / 10-sides chains.

Works with chains of any dimensions, but designed to work better with big size chains.
Overhauled Diamond-cutting machines

OVERHAULING and TESTING for the set-up of two overhauled diamond-cutting machines.
K 400 F8



 Ice lathe transformed for
OCTAGONAL  EMPTY  CHAIN working.
K 400 P



 New generation Ø400x600 double-chamber cylinder.
Brake on the cylinder axis.
Cylinder motor with inverter.
Automated forced lubrication to the heads.
Oil pump for guides. Eletronic footswitches.
Machine equipped for working by steps, with built-on machine for pavé and flat workings.
K 327



 New generation Ø320x700 double-chamber cylinder.
Brake on the cylinder axis.
Cylinder motor with inverter.
Trucks motor with inverter.
Automated forced lubrication to the heads.
Oil pump for guides. Eletronic footswitches.
Machine only for flat workings.
K 320



 Ø320x700 double-chamber cylinder.
Electronic engine for cylinder.
Machine for concaves with electronic variaton.
